Squeeze casting as liquid-metal forging, is a process by which molten metal solidifies under pressure within closed dies positioned between the plates of a hydraulic press.The applied pressure and instant contact of the molten metal with the die surface produce a rapid heat transfer condition that yields a pore-free fine-grain casting with mechanical properties approaching those of a wrought product. The squeeze casting process is easily automated to produce near-net to net shape high-quality components.

The squeeze casting process, combining the advantages of the casting and forging processes, has been widely used to produce quality castings. Because of the high pressure applied during solidification, porosities caused by both gas and shrinkage can be prevented or eliminated. The cooling rate of the casting can be increased by applying high pressure during solidification, since that contact between the casting and the die is improved by pressurization, which results in the foundation of fine-grained structures.

1) Good roughness like die casting & precision casting;

2) Parts with high-accuracy and tolerance like die casting & precision casting;

3) No more material costs and extra machining, much better than forging;

4) Can be T6 treatment, better than die casting, and like forging;

5) Parts with High Sealing Property as with almost no pores;

6) High mechanical property like forging, better than investment casting or sand casting;

Comparison between different processes:

After T6, the mechanical property of squeeze casting parts could be very high.

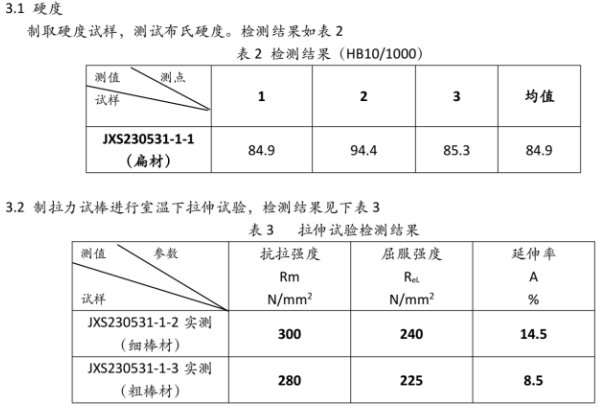

Mechanical property comparison of the squeeze casting parts from different materials:

With the current emphasis on reducing materials consumption through virtually net shape processing and the demand for higher-strength parts for weight savings, the emergence of squeeze casting as a production process has given materials and process engineers a new alternative to the traditional approaches of casting and forging. By pressurizing liquid metals while they solidify, near-net shapes can be achieved in sound, fully dense castings.

Squeeze casting is simple and economical, efficient in its use of raw material, and has excellent potential for automated operation at high rates of production. The process generates the highest mechanical properties attainable in a cast product. The microstructural refinement and integrity of squeeze cast products are desirable for many critical applications.
